Xilinx Virtex-7 FPGA VC7203 Characterization Kit
by: Xilinx, Inc

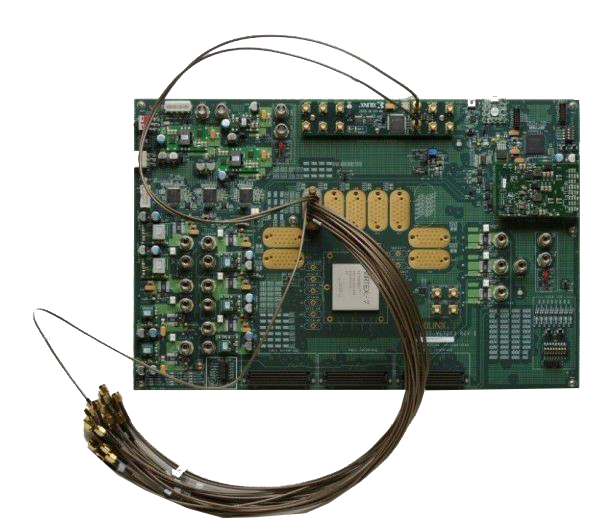

The Virtex®-7 FPGA VC7203 Characterization Kit provides the hardware environment for characterizing and evaluating 28 GTX (12.5Gbps) transceivers of the on-board Virtex-7 V485T FPGA.
Overview
Product Description
The Virtex®-7 FPGA VC7203 Characterization Kit provides the hardware environment for characterizing and evaluating 28 GTX (12.5Gbps) transceivers of the on-board Virtex-7 V485T FPGA. The VC7203 allows evaluation of the Integrated Bit Error Ratio Test (IBERT) demonstration using either the Vivado™ or ISE® design suites. Each GTX Quad and its associated reference clock are routed from the FPGA to a connector pad which is designed to interface with a Samtec BullsEye connector. A cable enabled with a BullsEye connector and 10 standard SMAs allows users to connect to a broad range of evaluation platforms, from backplanes and optical evaluation boards to high speed test equipment. Each BullsEye connector handles a full GTX Quad, four transmit/receive pairs as well as the two independent reference clocks, enabling the highest level of flexibility in testing custom applications.
Key Features & Benefits
- Hardware environment for characterizing and evaluating 28 GTX (12.5Gbps) transceivers on the Virtex-7 V485T FPGAs
- Hardware, design tools, IP, and pre-verified reference designs
- Integrated Bit Error Ratio Test (IBERT) reference design
- BullsEye connector supporting a full GTX Quad, with four transmit/receive pairs
- Nine Samtec BullsEye connector pads for the GTX transceivers and reference clocks
- Two pairs of differential MRCC inputs with SMA connectors
- System ACE™ SD controller
- Expand I/O with 3 FPGA Mezzanine Card (FMC) interface
Featured Xilinx Devices
Featuring the ROHS compliant VC7203 kit including the XC7VX485T-3FFG1761E FPGA
| Logic Cells | 485,760 |
|---|---|
| DSP Slices | 2,800 |
| Memory (Kb) | 37,080 |
| GTY 12.5 Gb/s Transceivers | 56 |
| I/0 Pins | 700 |
Product Information
Board Features
Featuring the VC7203 Characterization Board
Communication & Networking
- Nine Samtec BullsEye connector pads for the GTX transceivers and reference clocks
- Two pairs of differential MRCC inputs with SMA connectors
- USB-to-UART bridge
Clocking
- Fixed, 200 MHz 2.5V LVDS oscillator wired to multi-region clock capable (MRCC) inputs
- SuperClock-2 module supporting multiple frequencies
Display
- Power status LEDs
- General purpose DIP switches, LEDs, push buttons, and test I/O
Expansion Connectors
- Three VITA 57.1 FPGA mezzanine card (FMC) high pin count (HPC) connectors
Configuration
- Digilent USB JTAG programming port
Memory
- System ACE™ SD controller
Control & I/O
- I2C Bus
Power
- PMBus connectivity to on-board digital power supplies
What's Inside

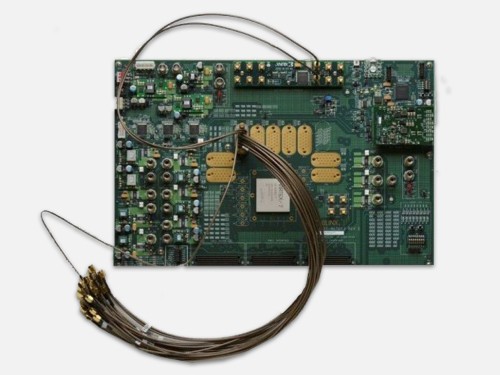

VC7203 Evaluation Board
Featuring the Virtex-7 XC7VX485T-3FFG1761E FPGA
Full seat Vivado® Design Suite: Design Edition
Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates

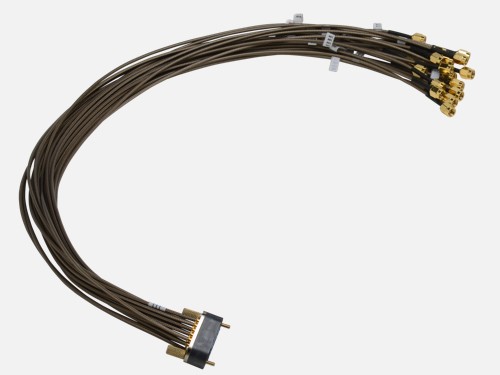

Samtec Bullseye Cable
10 standard SMAs
Superclock-2 Module Supporting Multiple Frequencies
Resources
Design Tools
| Name | Description | License Type |
|---|---|---|
| Vivado Design Suite Design Edition | The Xilinx Vivado® Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs. | Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates |
