  3. Xilinx Zynq-7000 SoC ZC702 Evaluation Kit
Click to Enlarge

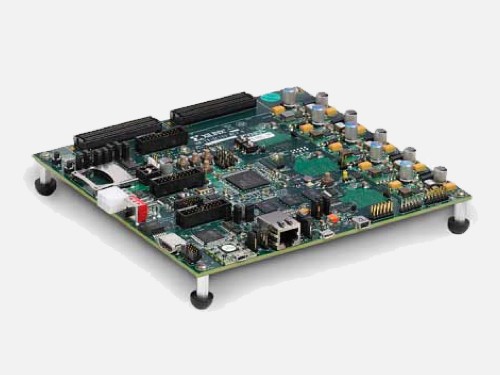

Xilinx Zynq-7000 SoC ZC702 Evaluation Kit

  • Price: $895
  • Part Number: EK-Z7-ZC702-G
  • Lead Time: 2 Weeks
  • Device Support:
Overview

Product Description

The Zynq®-7000 SoC ZC702 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.

Key Features & Benefits

  • Optimized for quickly prototyping embedded applications using Zynq-7000 SoCs
  • Hardware, design tools, IP, and pre-verified reference designs
  • Demonstrates a embedded design, targeting video pipeline
  • Advanced memory interface with 1GB DDR3 Component Memory
  • Enabling serial connectivity with USB OTG, UART, IIC, CAN Bus
  • Supports embedded processing with Dual ARM Cortex-A9 core processors
  • Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII​)
  • Implement Video display applications with HDMI out
  • Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured Xilinx Devices

Featuring the ROHS compliant ZC702 kit including the XC7Z020-CLG484-1

Logic Cells (K) 85
Block RAM (Mb) 4.9
DSP Slices 220
Maximum I/O Pins 200
Zynq-7000 Chip
Hardware

Board Features

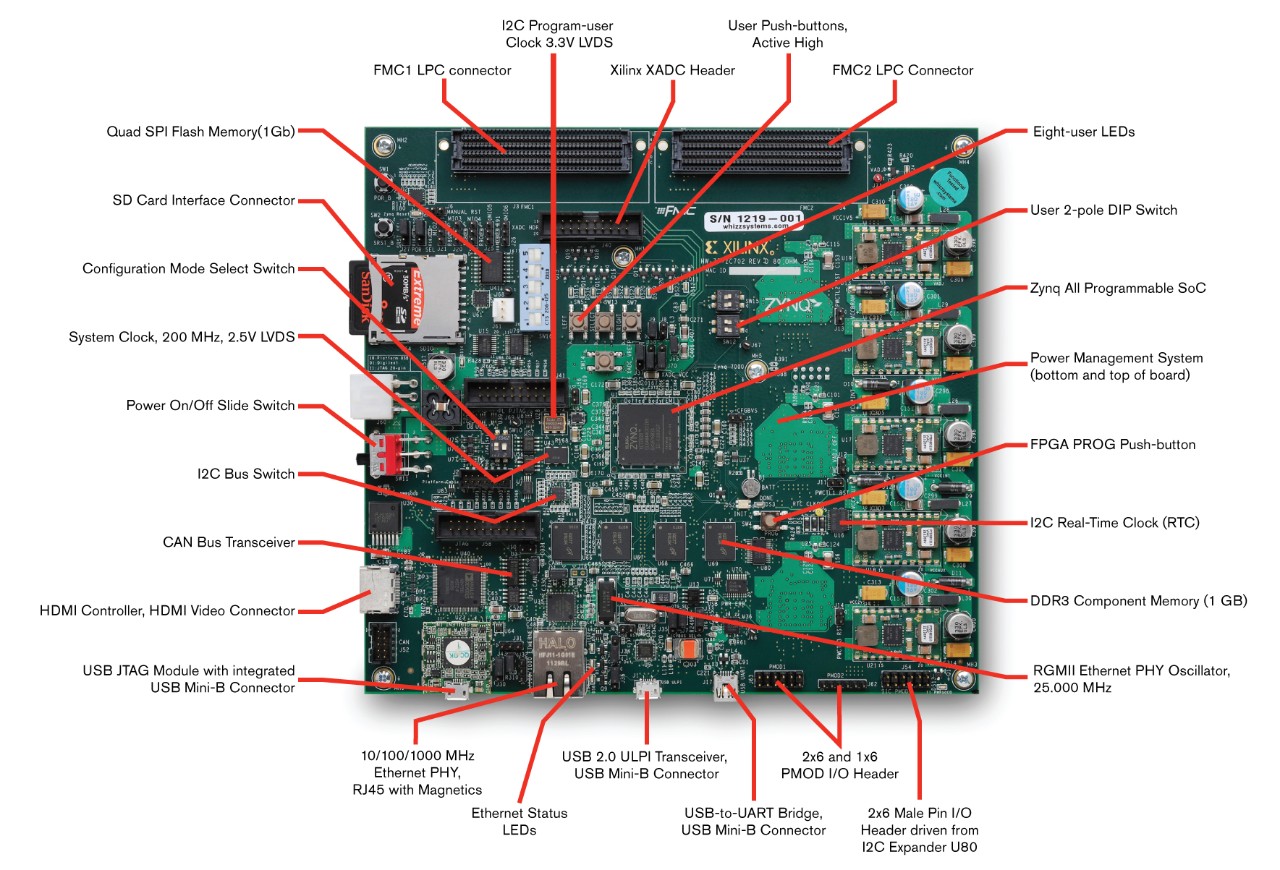

Featuring the ZC702 Base Board

ZC702 Base Board

Configuration

  • Onboard configuration circuitry
  • 16MB Quad SPI Flash
  • SDIO Card Interface (boot)
  • PC4 and 20 pin JTAG ports

Video/ Display

  • HDMI Video OUT
  • 8X LEDs

Power

  • 12V wall adapter or ATX
  • Voltage and Current measurement capability of supplies

Memory

  • DDR3 Component Memory 1GB
  • Support 32 data width
  • 16MB Quad SPI Flash
  • IIC - 1 KB EEPROM

Clocking

  • 200MHz Fixed PL Oscillator (Differential LVDS)
  • 156.25MHz (default) I2C Programmable Oscillator (Differential LVDS)
  • 33.33MHz Fixed PS System Oscillator (Single-Ended CMOS)

Communication & Networking

  • Gigabit Ethernet GMII, RGMII and SGMII
  • USB OTG 1 (PS) - Host USB
  • IIC Bus Headers/HUB (PS)
  • 1 CAN with Wake on CAN (PS)
  • USB UART (PS)

Control & I/O

  • 3 User Push Buttons
  • 2 User Switches
  • 8 User LEDs

Analog

  • XADC header

Expansion Connectors

  • FMC #1-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
  • FMC #2-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
  • IIC HUB/Expander
  • Dual Pmod (8 I/O Shared with LED's)
  • Single Pmod (4 I/O Shared with PJTAG)

Featured Xilinx Devices

Featuring the ROHS compliant ZC702 kit including the XC7Z020-CLG484-1

Logic Cells (K) 85
Block RAM (Mb) 4.9
DSP Slices 220
Maximum I/O Pins 200
Zynq-7000 Chip

What's Inside

ZC702 evaluation board

Featuring the XC7Z020 CLG484 -1 SoC

Video adapter

Ethernet cable

HDMI cable

USB port

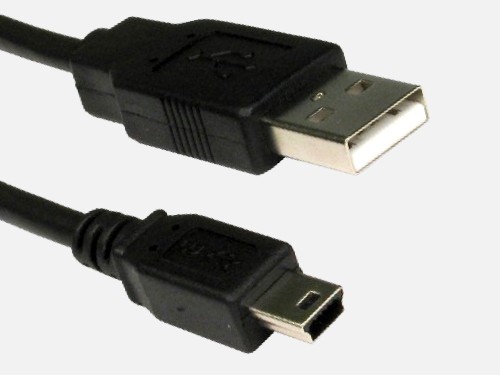

USB Mini Cable and USB Micro Cable

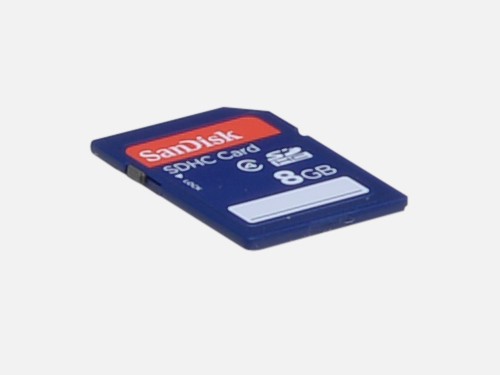

Sandisk 8 GB SD Card

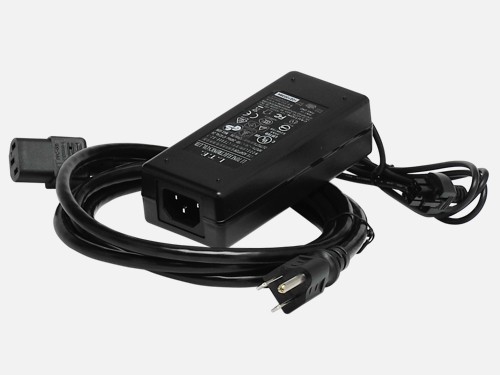

Power Supply

Featured Partners

Analog Devices
SiTime
