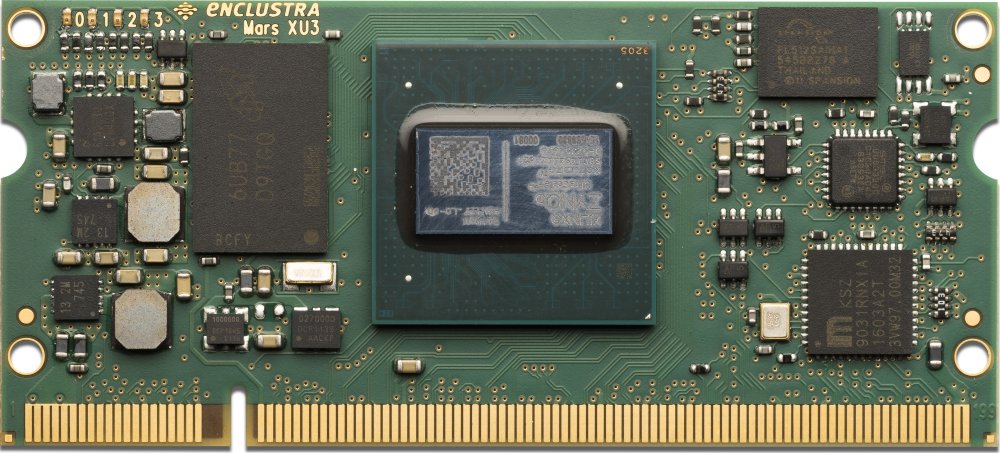

Mars XU3 Zynq UltraScale+ SOM / ZU3EG
by: Enclustra GmbH
The Mars XU3 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+ MPSoC-series device with fast DDR4 ECC SDRAM, eMMC flash, quad SPI flash, Gigabit Ethernet PHY and USB 3.0 and thus forms a complete and powerful embedded processing system.
主要特性与优势
- A complete and powerful embedded processing system in the industry-standard SO-DIMM form factor
- Available in industrial and commercial temperature range
- Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system
- Linux Board Support Package (BSP) and tool chain available
- Lowest power consumption due to the high-efficiency DC/DC converters
- Simple, low cost and yet rugged assembly
包裝內容物含配件
- 108 User IOs
- 16 GB eMMC flash
- 3D STEP Model
- 64 MB QSPI flash
- I/O nets length
- Linux Board Support Package (BSP): Compile Linux with the Enclustra Build Environment with a few cl
- Module Configuration Tool (MCT): Configure FPGA, program flash memory, read module information (type, serial number), monitor currents
- PCB Footprint
- Reference Design
- SO-DIMM Form Factor
- Single 3.3V Supply Voltage
- USB 3.0
- Up to 4 GB DDR4 SDRAM
- User Manual
- User Schematics
