  3. Xilinx Virtex-7 FPGA VC707 Evaluation Kit
Click to Enlarge

Xilinx Virtex-7 FPGA VC707 Evaluation Kit

by: Xilinx, Inc

The Virtex®-7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex-7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP etc.

  • Price: $5,244.00
  • Part Number: EK-V7-VC707-G
  • Lead Time: 15 Weeks
  • Device Support:
    • Virtex-7
Buy

Overview

Product Description

The Virtex®-7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex-7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP, and pre-verified reference designs for system designs that demand high-performance, serial connectivity and advanced memory interfacing. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.

Key Features & Benefits

  • 40Gb/s Connectivity platform for high-bandwidth and high-performance applications using Virtex-7 VX485T FPGAs
  • Hardware, design tools, IP, and pre-verified reference designs
  • Supports embedded processing with MicroBlaze, soft 32bit RISC
  • Enabling serial connectivity with PCIe Gen2x8, SFP+ and SMA Pairs, UART, IIC
  • Advanced memory interface with 1GB DDR3 SODIM Memory up to 800MHz / 1600Mbps
  • Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII)
  • Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured Xilinx Devices

Featuring the ROHS compliant kit including the XC7VX485T-2FFG1761 FPGA

Logic Cells  485,760
DSP Slices 2,800
Memory (Kb) 37,080
GTX 12.5 GB/s Transceivers 56
I/O Pins 700
virtex-7-bk-chip

Product Information

Specifications

Board Features

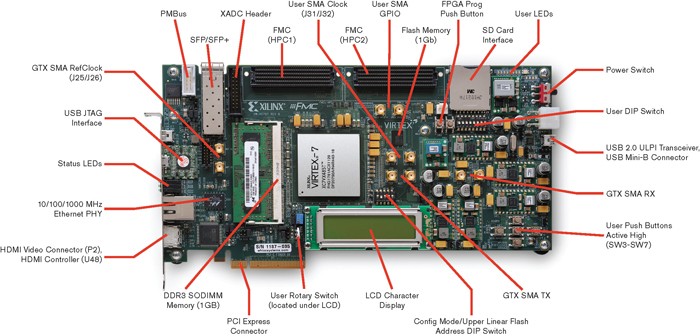

Featuring the VC707 Evaluation Board

ek-v7-vc707-g-base-board

Clocking

  • Fixed Oscillator with differential 200MHz output used as the “system” clock for the FPGA
  • Programmable Oscillator with 156.250 MHz as the default output and frequency targeted for Ethernet applications but oscillator is programmable for many end uses
  • Differential SMA clock input
  • Differential SMA GTX reference clock input
  • Jitter attenuated clock used to support CPRI/OBSAI applications that perform clock recovery from a user-supplied SFP/SFP+ module

Configuration

  • Onboard JTAG configuration circuitry to enable configuration over USB
  • JTAG header provided for use with Xilinx download cables such as the Platform Cable USB II
  • 128MB (1024Mb) Linear BPI Flash for PCIe® Configuration
  • 16MB (128Mb) Quad SPI Flash

Expansion Connectors

  • FMC1 – HPC (8 XCVR, 160 single ended or 80 differential (34 LA pairs, 24 HA pairs, 22 HB pairs) user-defined pins)
  • FMC2 – HPC (8 XCVR, 116 single ended or 58 differential (34 LA pairs, 24 HA pairs) user-defined pins)
  • Vadj supports 1.8V
  • IIC

Communication & Networking

  • Gigabit Ethernet GMII, RGMII and SGMII
  • SFP+ transceiver connector
  • GTX port (TX, RX) with four SMA connectors
  • UART To USB Bridge
  • PCI Express x8 gen2 Edge Connector (lay out for Gen3)

Memory

  • 1GB DDR3 SODIMM 800MHz / 1600Mbps
  • 128MB (1024Mb) Linear BPI Flash for PCIe Configuration
  • SD Card Slot
  • 8Kb IIC EEPROM

Control & I/O

  • 5X Push Buttons
  • 8X DIP Switches
  • Rotary Encoder Switch (3 I/O)
  • AMS FAN Header (2 I/O)

Debug & Analog Input

  • 8 GPIO Header, 9 pin removable LCD
  • Analog Mixed Signal (AMS) Port

Power

  • 12V wall adapter or ATX
  • Voltage and Current measurement capability

Display

  • HDMI Video OUT
  • 2 x16 LCD display
  • 8X LEDs
What’s Inside

What's Inside

VC707 Evaluation Board

Featuring the Virtex-7 XC7VX485T-2FFG1761C FPGA

Full seat Vivado® Design Suite: Design Edition

Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates

AMS 101 Evaluation Card

Pairs with free AMS Evaluator tool for analyzing analog data, internal temperature and voltage measurements, and saving data to a .csv file

Ethernet Cable

Micro USB Cable

Mini USB Cable

Power Adapter

Power Cord

Programmable MEMS Oscillators

SiTime

Power Delivery Solutions

Xilinx

Resources

Documentation

Filter Documentation

Step 1: Board Revision

Step 2: Tools Version

Step 3: Show Documentation

Click to update search results table
Tools & IP

Design Tools

Name Description License Type
Vivado Design Suite Design Edition The Xilinx Vivado® Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs. Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates

Intellectual Property

Name Description License Type
Memory Interface Generator (MIG) MIG is a free software tool used to generate memory controllers and interfaces for Xilinx FPGAs. No-charge IP
